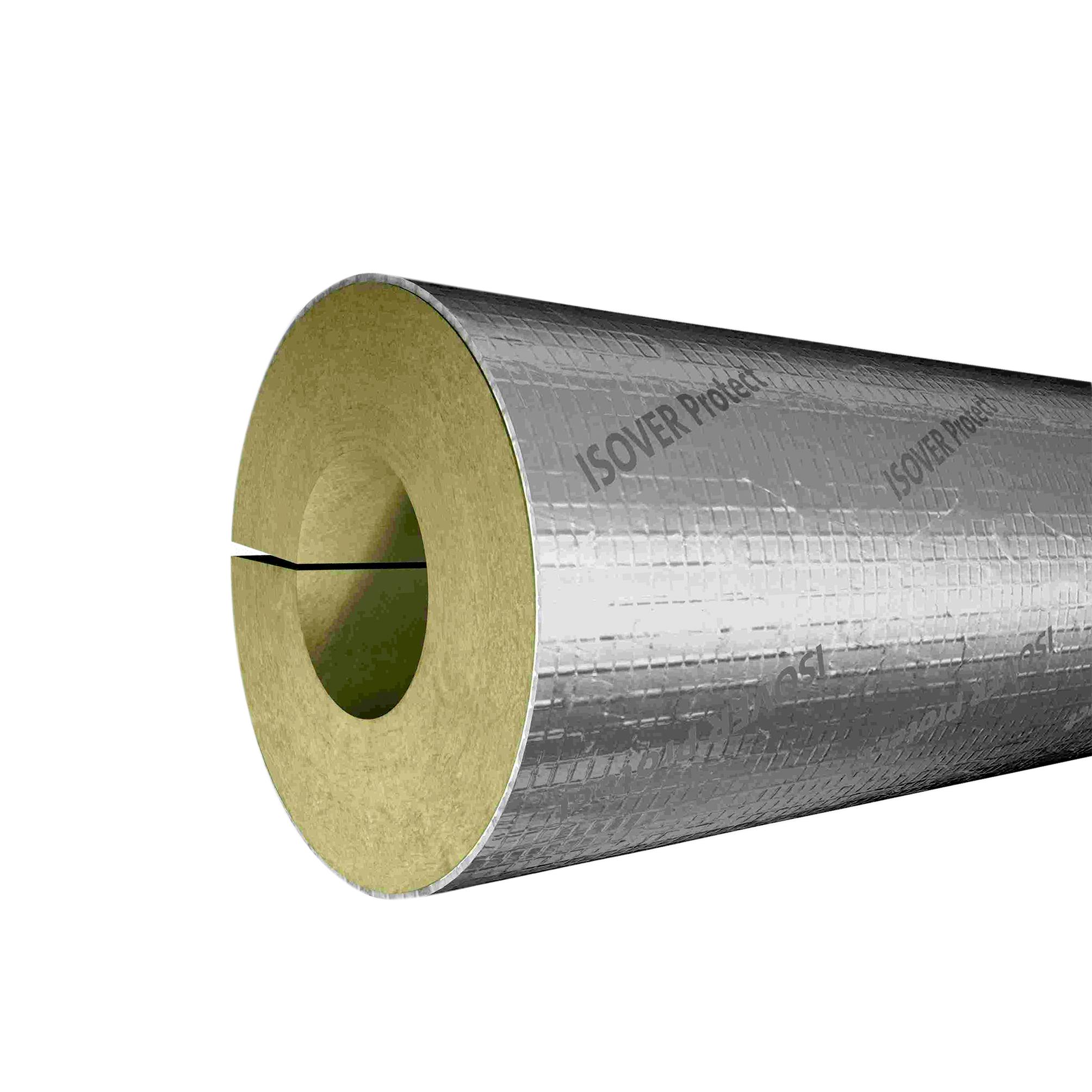

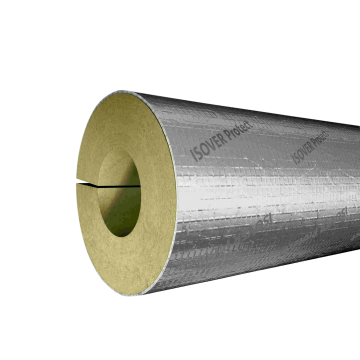

Mineral wool pipe jackets with aluminium facing

U-Protect Pipe Section Alu 2

Display variants as list

For pipe outer Ø:

Insulation thickness:

20 mm 30 mm 40 mm 50 mm 60 mm 70 mm 80 mm 90 mm 100 mm

Field of application

For thermal insulation of flammable and non-flammable pipes as well as for application areas, where non-flammable building material is required
For use as pipe partition when routing through solid ceilings, and solid and lightweight partition walls

Advantages

Slit on one side for simple and quick fitting onto the pipe
No acoustic bridges between pipe and building structure
Pipe insulation meets the requirements of the energy saving decree (EnEV)
No change in the insulation material between section insulation and component feed-through
The 2-in-1 pipe section - heat and fire protection for piping in a single product
Efficient to use due to low weight

Product number	For pipe outer Ø	Insulation thickness	Action
157250	15 mm	20 mm	Carton
157263	15 mm	30 mm	Carton
157251	18 mm	20 mm	Carton
157264	18 mm	30 mm	Carton
157252	22 mm	20 mm	Carton
157265	22 mm	30 mm	Carton
157277	22 mm	40 mm	Carton
157253	28 mm	20 mm	Carton
157266	28 mm	30 mm	Carton
157278	28 mm	40 mm	Carton
157254	35 mm	20 mm	Carton
157267	35 mm	30 mm	Carton
157279	35 mm	40 mm	Carton
157288	35 mm	50 mm	Carton
157255	42 mm	20 mm	Carton
157268	42 mm	30 mm	Carton
157280	42 mm	40 mm	Carton
157289	42 mm	50 mm	Carton
157256	48 mm	20 mm	Carton
157269	48 mm	30 mm	Carton
157281	48 mm	40 mm	Carton
157290	48 mm	50 mm	Carton
157257	54 mm	20 mm	Carton
157270	54 mm	30 mm	Carton
157282	54 mm	40 mm	Carton
157291	54 mm	50 mm	Carton
157258	60 mm	20 mm	Carton
157271	60 mm	30 mm	Carton
157283	60 mm	40 mm	Carton
157292	60 mm	50 mm	Carton
157299	60 mm	60 mm	Carton
157259	64 mm	20 mm	Carton
157272	64 mm	30 mm	Carton
157284	64 mm	40 mm	Carton
157293	64 mm	50 mm	Carton
157300	64 mm	60 mm	Carton
157305	64 mm	70 mm	Carton
157260	70 mm	20 mm	Carton
157273	70 mm	30 mm	Carton
157285	70 mm	40 mm	Carton
157294	70 mm	50 mm	Carton
157301	70 mm	60 mm	Carton
157306	70 mm	70 mm	Carton
157261	76 mm	20 mm	Carton
157274	76 mm	30 mm	Carton
157286	76 mm	40 mm	Carton
157295	76 mm	50 mm	Carton
157302	76 mm	60 mm	Carton
157307	76 mm	70 mm	Carton
165523	76 mm	80 mm	Carton
157262	89 mm	20 mm	Carton
165734	89 mm	30 mm	Carton
157303	89 mm	60 mm	Carton
165524	89 mm	80 mm	Carton
157308	89 mm	90 mm	Carton
157309	89 mm	100 mm	Carton
