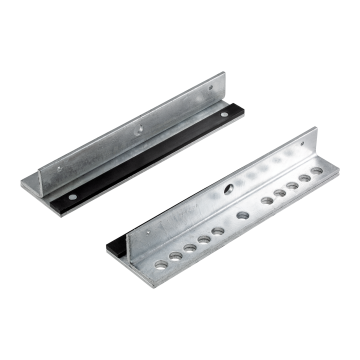

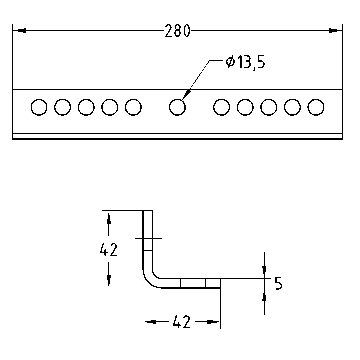

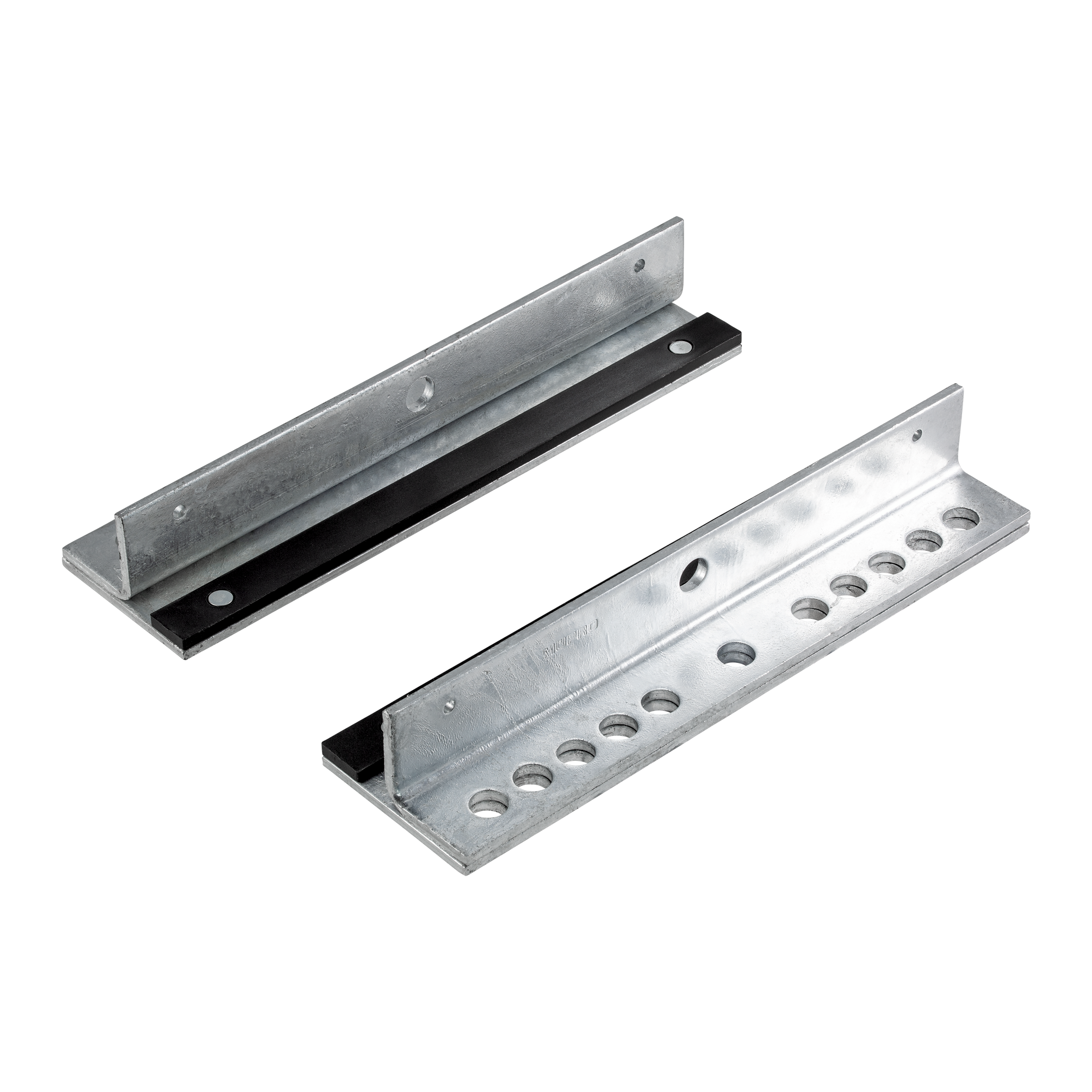

MPT-Guide type F and FG

hot-dip galvanised

Field of application

  • For guiding MÜPRO pipe slides on subconstructions of MPT-Support profiles
  • Suitable as guide without lift lock
  • Hot-dip galvanised version for indoor and outdoor applications

Advantages

  • Guide angle set for simple installation of pipe slides on MPT-Profiles with or without slider to reduce reaction forces
Support channels:
for MPT-Profiles
Product type:
Connecting parts
Material:
Steel
Surface:
hot-dip galvanised
