MPC-Connection lock type S+
New

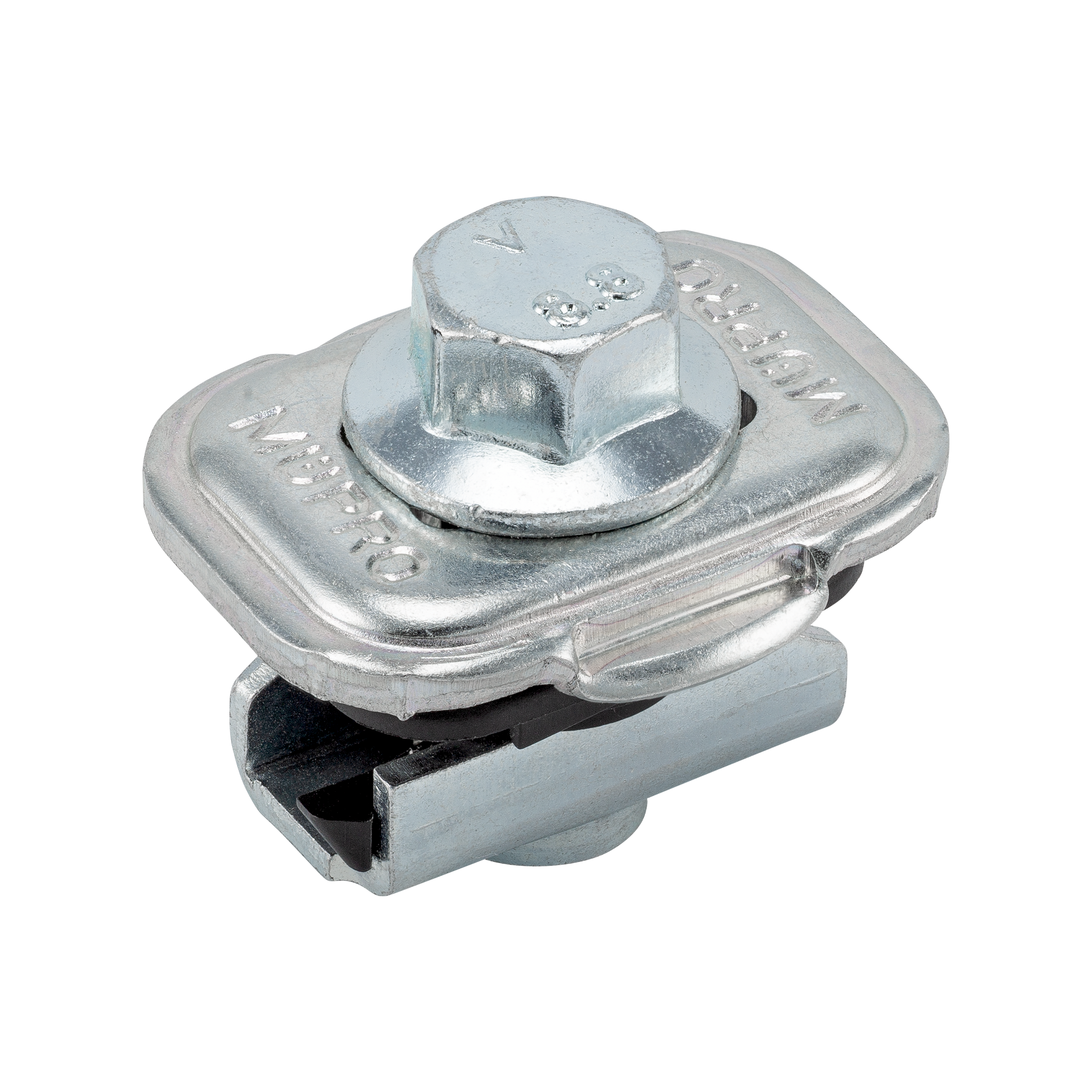

MPC-Connection lock type S+

MPC-Connection lock type S+, for profiles 38/24-40/120, galvanised

Art.no.: 180514
Weight/item: 0.065 kg
Pieces

Field of application

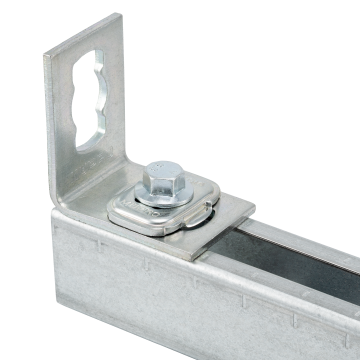

  • For connecting type S+ mounting parts with MPC-Support channels
  • For indoor use

Advantages

  • Time-saving - fast and safe connection of type S+ mounting parts with MPC-Support channels
  • Easy - simply slot into the type S+ mounting part and tighten the connection lock by turning 90°
  • No wrench or auxiliary tool needed to hold in place
  • No confusion - one size fits all type S+ mounting parts
Basic data text
MPC-Connection lock type S+, for profiles 38/24-40/120, galvanised
Support channel systems
for MPC-Profiles
Product type
Quick-mounting system type S+
Thread
M10
For profiles
38/24-40/120
Material
Steel
Surface
galvanised
Fire protection certified
Yes
Spanner width
13 mm
Customs tariff number
73269060
Further technical details can be found in the data sheet.
