Brackets refrigerant anchor point

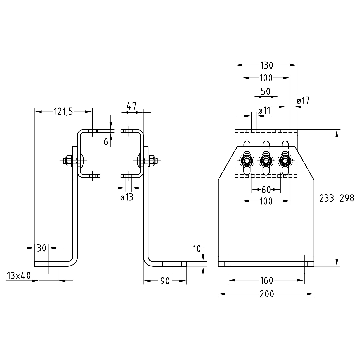

Bracket, heavy-duty version, for anchor point pipe clamp type 170 FL (219.1 - 355.6 mm), height: 233 - 298 mm, galvanised

Display variants as list

Design:

Heavy-duty version Slim version Standard version

Reset selection

Art.no.: 178715

Design:

Heavy-duty version

Sales unit:	1 Pieces
Weight/item:	10.256 kg

Your price:

Pieces

Field of application

Stable support system with high load-bearing capacity for pipe installations

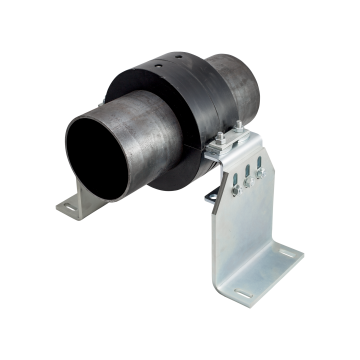

Ideal pipe anchor point for chilled water pipes in combination with anchor point pipe clamps type 170 FL
Ideal as height adjustable subframe for refrigerant anchor points

Advantages

Basic data text: Bracket, heavy-duty version, for anchor point pipe clamp type 170 FL (219.1 - 355.6 mm), height: 233 - 298 mm, galvanised
Design: Heavy-duty version
Overall height [mm]: 233 - 298 mm
Product type: Anchor points
For pipe outer Ø: 219.1 - 355.6 mm
Material: Steel
Surface: galvanised
eCl@ss 11.1: 23-35-01-90
eCl@ss 7.1: 23-35-01-90
Scope of supply: 1 kit consisting of: 2 Mounting brackets, 2 Adapter brackets, 6 Coach bolts M12, 6 Hexagonal nuts M12, 6 Washers for M12. All parts are galvanised.
Adjustment range: 65 mm
Customs tariff number: 83025000
