Vibration control hangers

Vibration control hanger, M8, galvanised

Display variants as list
Art.no.: 117736
Connection for: Threaded rods M8
Sales unit: 100 Pieces
Weight/item: 0.066 kg
Pieces

Field of application

  • Vibration control of traverses and pipe bridges made of MPC-Support channels

Advantages

  • Noise decoupling integrated into the hanger
  • Very good vibration improvement of up to 17 dB(A) due to the highly elastic DÄMMGULAST® Spring element
  • Attachment for threaded rods M8, M10 or alternatively for stripmounting, depending on type
  • The design for strip-mounting is also suitable for suspension attachment by means of hanger sockets
  • Subsequent height adjustment of the threaded rods is possible
Basic data text:

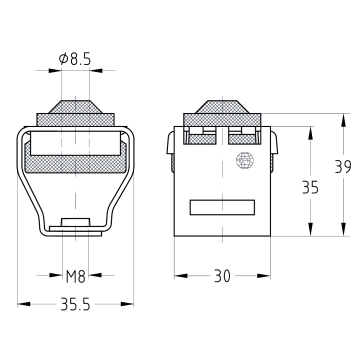

Vibration control hanger, M8, galvanised
Connection for:
Threaded rods M8
Material:
Steel
Surface:
galvanised
Height:
40 mm
Vibration control tested:
Yes
Max. recommended load:
230 N
Average vibration reduction:
16 dB(A)
