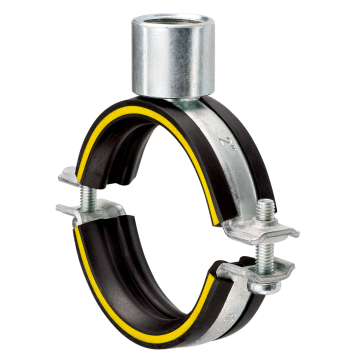

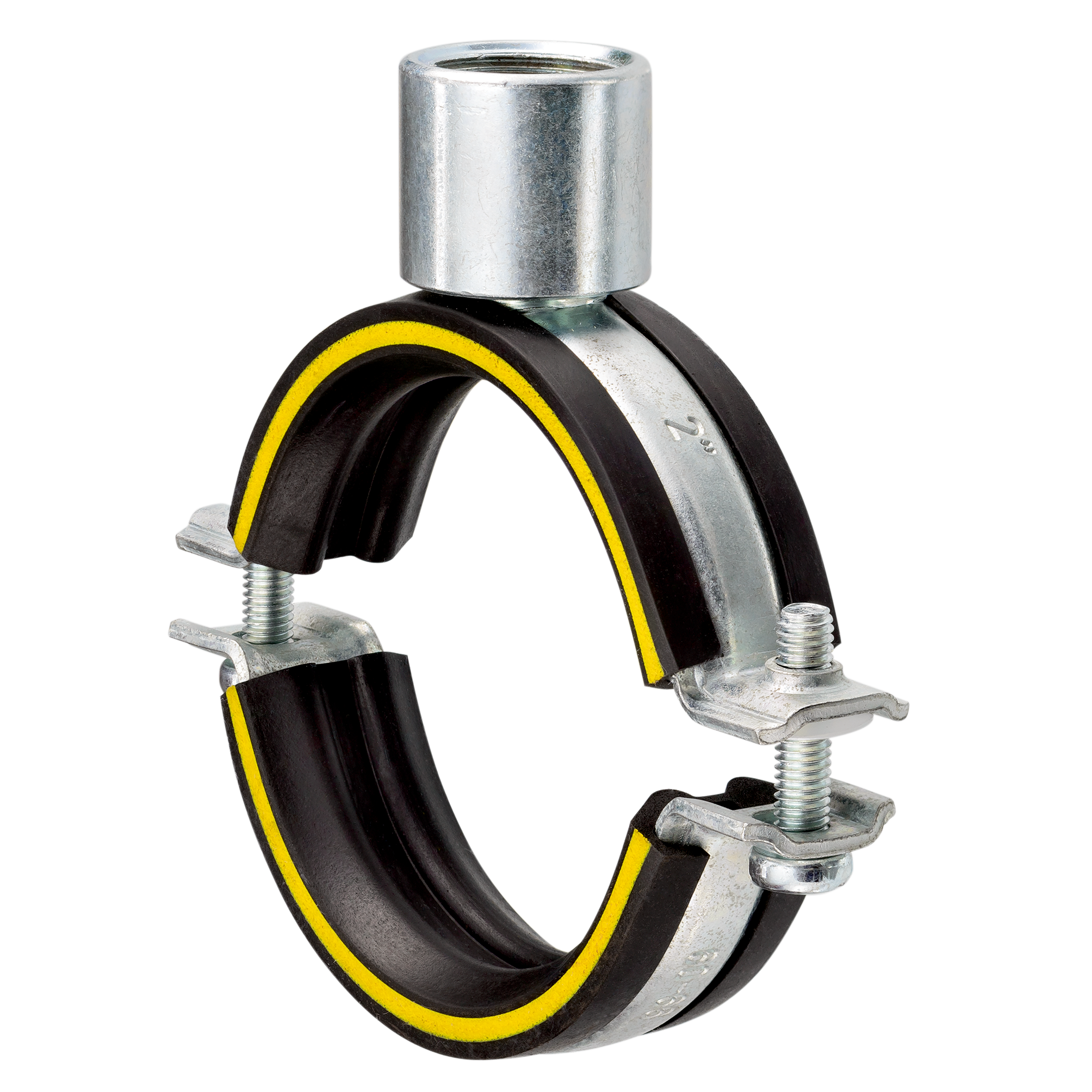

Single bossed clamps

with connection socket and DÄMMGULAST® yellow, galvanised

Display variants as list

Connecting thread [inch]:

½" ¾"

Vibration control lining:

DÄMMGULAST® yellow

Clamping range:

21 - 26 mm 26 - 30 mm 31 - 38 mm 40 - 47 mm 48 - 54 mm 54 - 60 mm 60 - 66 mm 68 - 73 mm 73 - 80 mm 82 - 87 mm 87 - 94 mm 99 - 104 mm 105 - 112 mm 112 - 118 mm 122 - 128 mm 132 - 137 mm 137 - 142 mm 142 - 148 mm 149 - 156 mm 159 - 164 mm 164 - 169 mm 169 - 172 mm 177 - 183 mm 197 - 203 mm

Field of application

Suitable combination for pipelines with dynamic loads with expansion points
Suitable for pipe attachments in industrial areas
Specially suitable for standing fixings
Suitable for fixings in air-conditioning, ventilation and sanitary areas
For indoor use

Advantages

Proven, two-piece single bossed clamp in heavy-duty design
For bending-resistant fastening at greater distances from the building structure

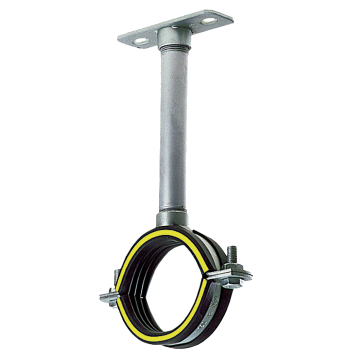

Ideal combination when used with pipe nipple and base plate or socket adapter
DÄMMGULAST® vibration control lining with yellow identification stripe: average sound level improvement up to 22 dB(A)
This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) and is submitted to controls according to RAL-GZ 655-B

Product type:: Pipe clamps medium load range
Vibration control lining:: DÄMMGULAST® yellow
Surface:: galvanised
Average vibration reduction:: 22 dB(A)

Single bossed clamps, with connection socket and DÄMMGULAST® yellow, galvanised

Test Report noise reduction - Single bossed clamp Dämmgulast® yellow

Product number	Connecting thread [inch]	Vibration control lining	Clamping range	Action
154945	½"	DÄMMGULAST® yellow	21 - 26 mm	Pieces
154946	½"	DÄMMGULAST® yellow	26 - 30 mm	Pieces
154947	½"	DÄMMGULAST® yellow	31 - 38 mm	Pieces
154948	½"	DÄMMGULAST® yellow	40 - 47 mm	Pieces
154949	½"	DÄMMGULAST® yellow	48 - 54 mm	Pieces
154950	½"	DÄMMGULAST® yellow	54 - 60 mm	Pieces
154951	½"	DÄMMGULAST® yellow	60 - 66 mm	Pieces
154816	½"	DÄMMGULAST® yellow	68 - 73 mm	Pieces
154817	½"	DÄMMGULAST® yellow	73 - 80 mm	Pieces
154818	½"	DÄMMGULAST® yellow	82 - 87 mm	Pieces
154819	½"	DÄMMGULAST® yellow	87 - 94 mm	Pieces
154820	½"	DÄMMGULAST® yellow	99 - 104 mm	Pieces
154821	½"	DÄMMGULAST® yellow	105 - 112 mm	Pieces
154822	½"	DÄMMGULAST® yellow	112 - 118 mm	Pieces
154823	½"	DÄMMGULAST® yellow	122 - 128 mm	Pieces
154824	½"	DÄMMGULAST® yellow	132 - 137 mm	Pieces
154825	½"	DÄMMGULAST® yellow	137 - 142 mm	Pieces
154826	½"	DÄMMGULAST® yellow	142 - 148 mm	Pieces
154827	½"	DÄMMGULAST® yellow	149 - 156 mm	Pieces
154828	½"	DÄMMGULAST® yellow	159 - 164 mm	Pieces
154829	½"	DÄMMGULAST® yellow	164 - 169 mm	Pieces
154831	½"	DÄMMGULAST® yellow	177 - 183 mm	Pieces
154832	½"	DÄMMGULAST® yellow	197 - 203 mm	Pieces
154954	¾"	DÄMMGULAST® yellow	60 - 66 mm	Pieces
154833	¾"	DÄMMGULAST® yellow	68 - 73 mm	Pieces
154834	¾"	DÄMMGULAST® yellow	73 - 80 mm	Pieces
154835	¾"	DÄMMGULAST® yellow	82 - 87 mm	Pieces
154836	¾"	DÄMMGULAST® yellow	87 - 94 mm	Pieces
154837	¾"	DÄMMGULAST® yellow	99 - 104 mm	Pieces
154838	¾"	DÄMMGULAST® yellow	105 - 112 mm	Pieces
154839	¾"	DÄMMGULAST® yellow	112 - 118 mm	Pieces
154840	¾"	DÄMMGULAST® yellow	122 - 128 mm	Pieces
154841	¾"	DÄMMGULAST® yellow	132 - 137 mm	Pieces
154842	¾"	DÄMMGULAST® yellow	137 - 142 mm	Pieces
154843	¾"	DÄMMGULAST® yellow	142 - 148 mm	Pieces
154844	¾"	DÄMMGULAST® yellow	149 - 156 mm	Pieces
154845	¾"	DÄMMGULAST® yellow	159 - 164 mm	Pieces
154846	¾"	DÄMMGULAST® yellow	164 - 169 mm	Pieces
154847	¾"	DÄMMGULAST® yellow	169 - 172 mm	Pieces
154848	¾"	DÄMMGULAST® yellow	177 - 183 mm	Pieces
154849	¾"	DÄMMGULAST® yellow	197 - 203 mm	Pieces
