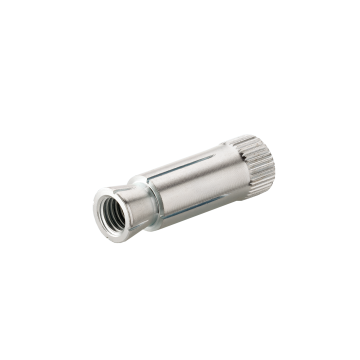

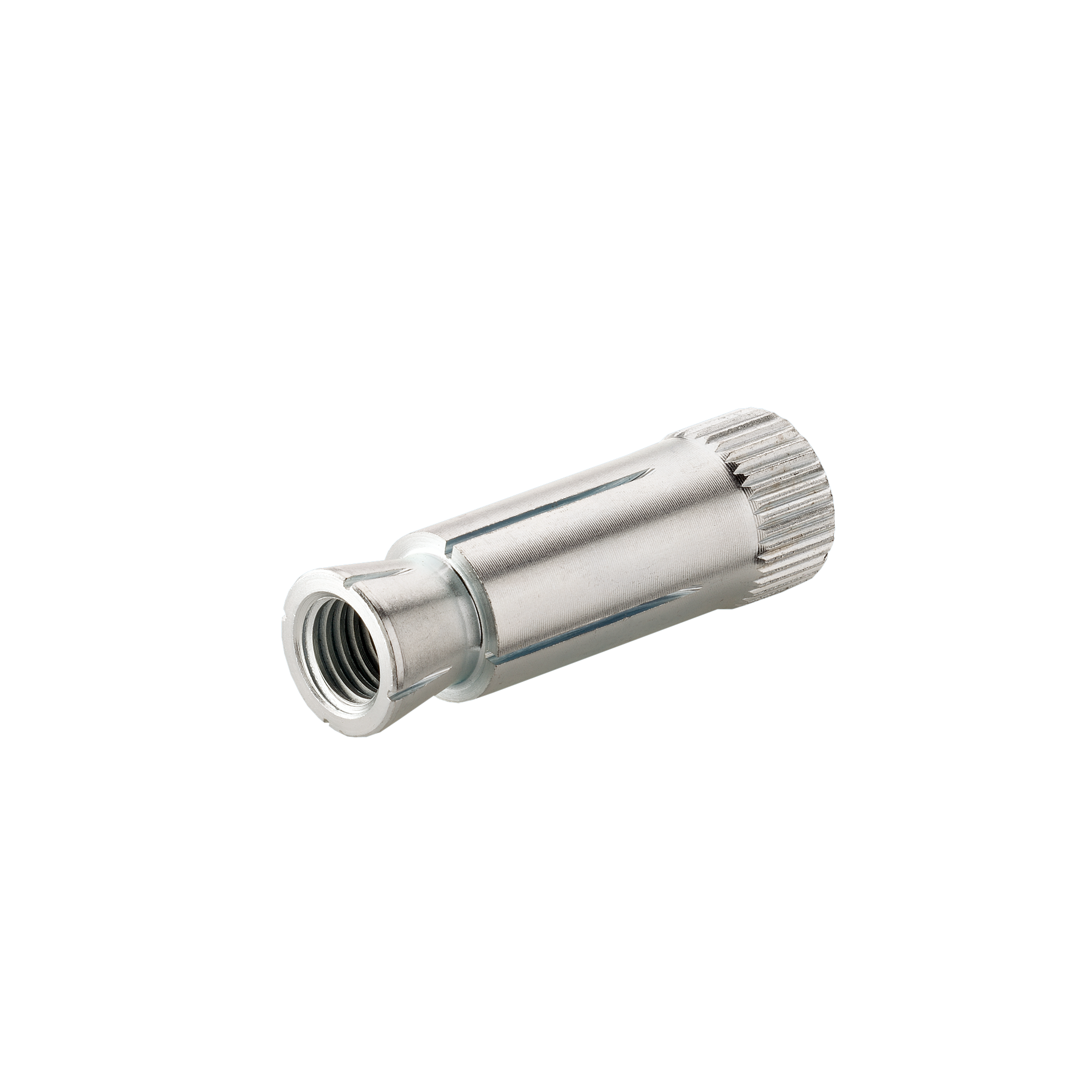

Hollow-core slab ceiling anchors

type Easy for anchoring in prestressed concrete hollow-core slab ceilings

Display variants as list

Connecting thread:

M8 M10 M12

Field of application

  • Special anchor for suspension in prestressed concrete hollow-core slab ceilings

Advantages

  • Flexible application in combination with threaded rods or hexagon head bolts
  • Approved by the building authorities
  • Secured function in the hollow core and in the solid material
  • Quick and easy to install
  • Flush with the surface of the building component
  • For material thicknesses of up to 50 mm
  • Approved by the VdS (Verband der Schadenversicherer) / Association of Indemnity Insurers
Field of application:
Concrete cracked | Concrete non-cracked | Natural stone, hard | Prestressed concretehollow core slab ceilings (ETA)
Product type:
metal plugs
Fire protection tested:
Yes
VdS:
Yes
