Safety clips

galvanised

Display variants as list

Vibration control lining:

DÄMMGULAST® green DÄMMGULAST® wihte

Size:

Content:

100 pieces 300 pieces/box

Field of application

Suitable for all attachment of pipes in residential constructions

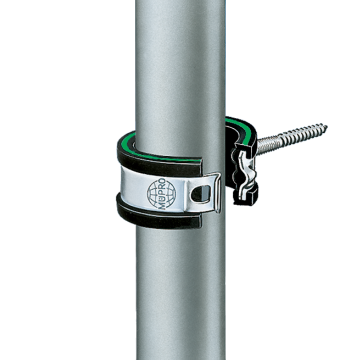

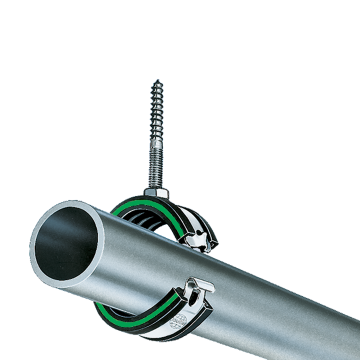

Ideal as support for risers or suspended pipes
Ideal for attachment using bolt screws or shoulder screws

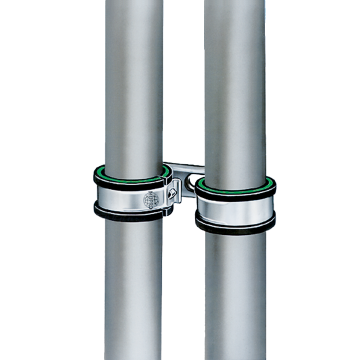

Ideal for the installation of pipes in parallel when used together with twin brackets
For indoor use

Advantages

Quick and efficient attachment without fastener bolts
Safety fastening due to form-fit click-in
Self-locking due to spring effect

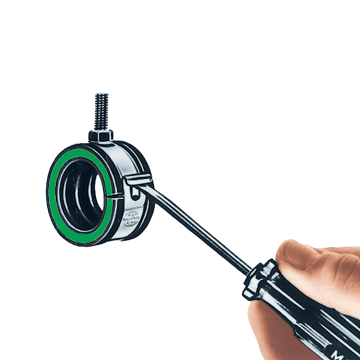

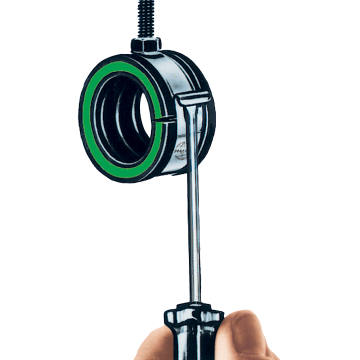

Easy to handle as the shape of the fastener is made to fit the tool
The pipe is free to move during the installation
Without fastener lugs - ideal where appearance is important
The slender construction without fastening lugs allows pipes to be installed close together
DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)

Safety clips, galvanised

Product number	Vibration control lining	Size	Content	Action
123222	DÄMMGULAST® green	10 mm	100 pieces	Pieces
123226	DÄMMGULAST® green	12 mm	100 pieces	Pieces
123230	DÄMMGULAST® green	15 mm	100 pieces	Pieces
123234	DÄMMGULAST® green	16 mm	100 pieces	Pieces
123261	DÄMMGULAST® green	17.2 mm	100 pieces	Pieces
123238	DÄMMGULAST® green	18 mm	100 pieces	Pieces
123242	DÄMMGULAST® green	20 mm	100 pieces	Pieces
123218	DÄMMGULAST® green	21.3 mm	100 pieces	Pieces
123246	DÄMMGULAST® green	22 mm	100 pieces	Pieces
123250	DÄMMGULAST® green	24 mm	100 pieces	Pieces
123258	DÄMMGULAST® green	26.9 mm	100 pieces	Pieces
123254	DÄMMGULAST® green	28 mm	100 pieces	Pieces
123266	DÄMMGULAST® green	30 mm	100 pieces	Pieces
123274	DÄMMGULAST® green	33 mm	100 pieces	Pieces
123206	DÄMMGULAST® green	33.7 mm	100 pieces	Pieces
123282	DÄMMGULAST® green	35 mm	100 pieces	Pieces
123285	DÄMMGULAST® green	40 mm	100 pieces	Pieces
123324	DÄMMGULAST® wihte	12 mm	100 pieces	Pieces
123328	DÄMMGULAST® wihte	15 mm	100 pieces	Pieces
123332	DÄMMGULAST® wihte	18 mm	100 pieces	Pieces
123351	DÄMMGULAST® wihte	20 mm	100 pieces	Pieces
123336	DÄMMGULAST® wihte	22 mm	100 pieces	Pieces
123340	DÄMMGULAST® wihte	24 mm	100 pieces	Pieces
123344	DÄMMGULAST® wihte	28 mm	100 pieces	Pieces
123348	DÄMMGULAST® wihte	30 mm	100 pieces	Pieces
123321	DÄMMGULAST® wihte	33.7 mm	100 pieces	Pieces
123305	DÄMMGULAST® green	15 mm	300 pieces/box	Pieces
123313	DÄMMGULAST® green	22 mm	300 pieces/box	Pieces
123317	DÄMMGULAST® green	28 mm	300 pieces/box	Pieces
