Brackets refrigerant anchor point

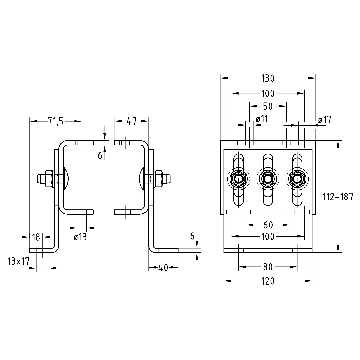

Bracket, for anchor point pipe clamp type 170 FL (76,1–168,3 mm), slim version, height: 112-187 mm, galvanised

Display variants as list
Art.no.: 167717
Design: Slim version
Sales unit: 1 Pieces
Weight/item: 4 kg
Pieces

Field of application

  • Stable support system with high load-bearing capacity for pipe installations
  • Ideal pipe anchor point for chilled water pipes in combination with anchor point pipe clamps type 170 FL
  • Ideal as height adjustable subframe for refrigerant anchor points

Advantages

  • Continuously adjustable in height and slope
  • As height adjustment or to compensate for unevennesses
  • Especially suitable for absorbing high axial loads on the pipe
Basic data text:
Bracket, for anchor point pipe clamp type 170 FL (76,1–168,3 mm), slim version, height: 112-187 mm, galvanised
Design:
Slim version
Overall height [mm]:
112 - 187 mm
Product type:
Anchor points
Material:
Steel
Surface:
galvanised
Adjustment range:
75 mm
