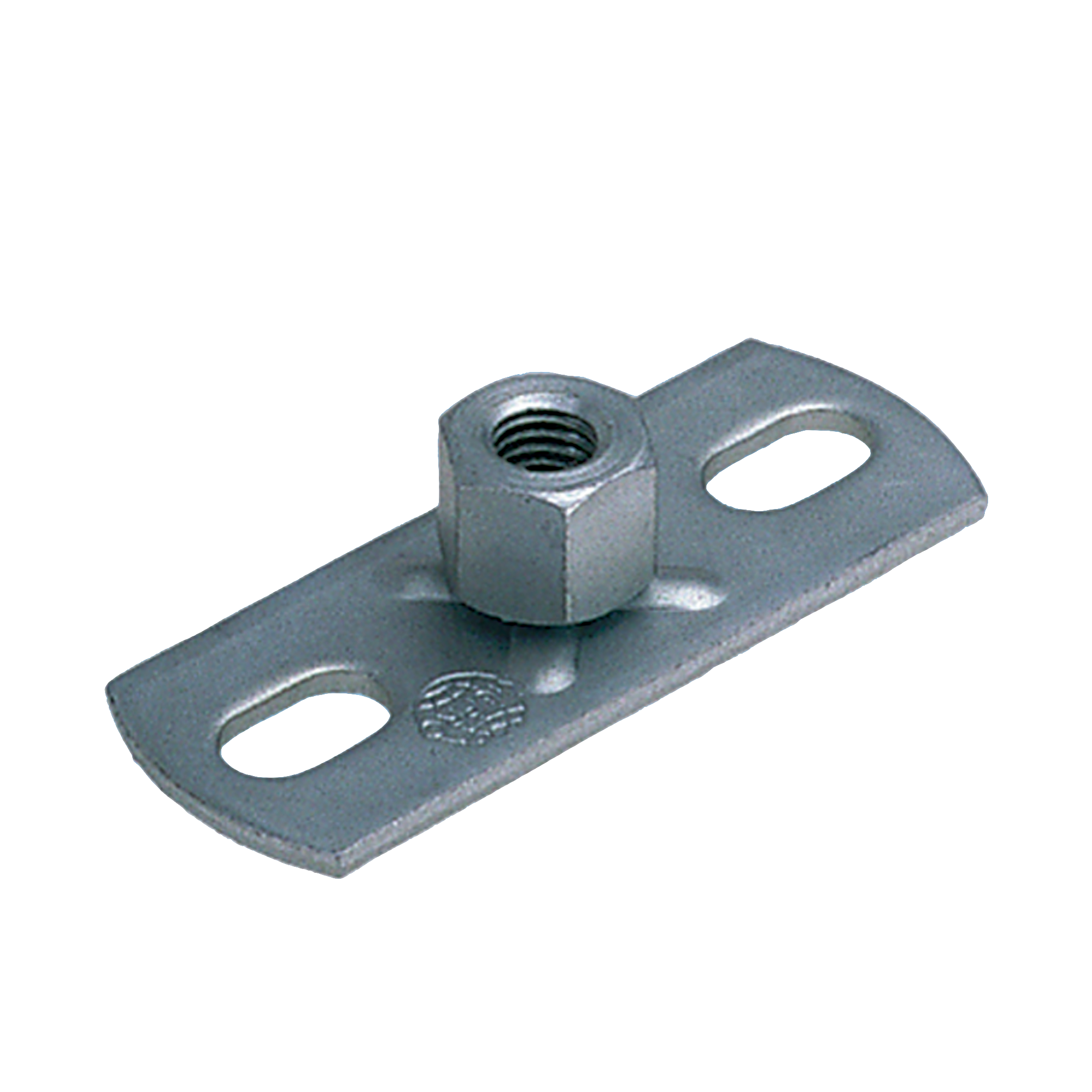

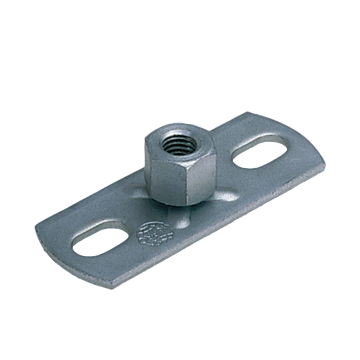

Base plates with combination nut

Base plate size 1, M8/M10, galvanised

Art.no.: 112397
Sales unit: 10 Pieces
Weight/item: 0.072 kg
Pieces
Basic data text:
Base plate size 1, M8/M10, galvanised
Product type:
Base plates
Thread:
M8/M10
Material:
Steel
Surface:
galvanised
Size:
1
Hole-centre distance C:
54 mm
eCl@ss 7.1:
23-15-90-90
eCl@ss 11.1:
23-15-90-90
Dimension b:
30 mm
Dimension L:
80 mm
Dimension s:
3 mm
Oblong hole V:
9 x 16 mm
Customs tariff number:
73269060
