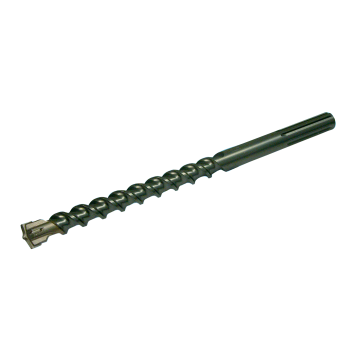

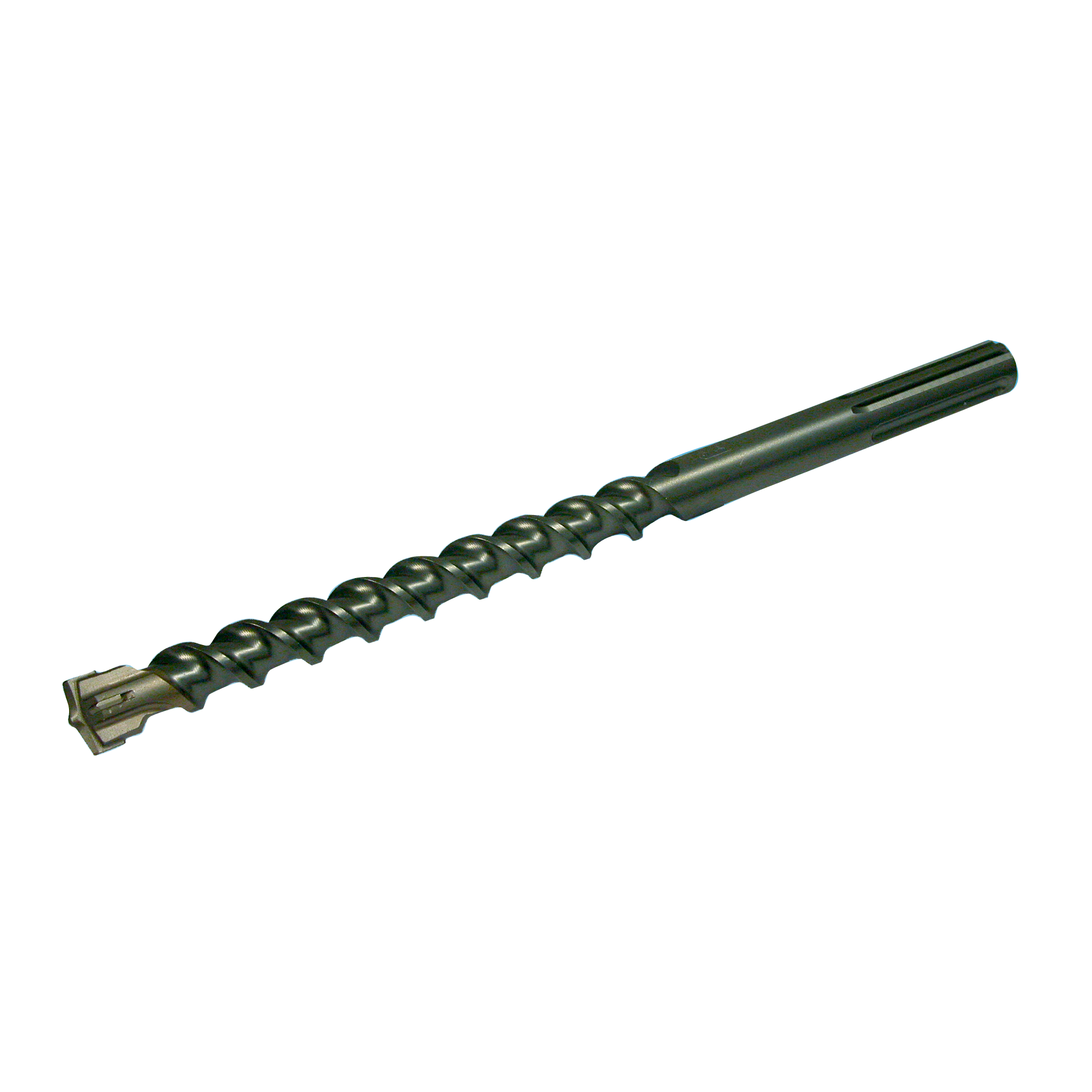

Hammer drills SDS-max

with 4-blade technology

Display variants as list

Diameter:

Total length:

320 mm 340 mm 370 mm 520 mm 570 mm

Select a variant for further information, images and documents.

Field of application

Advantages

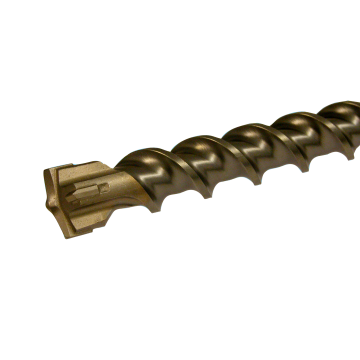

Four-cutting-edge drill bit for good centring in the drill hole
Good removal of drill dust due to the generously dimensioned helix
Minimised friction in the hole due to the optimised helix
Two secondary cutting edges protect the main cutting edge against contact with steel reinforcements

Product number	Diameter	Total length	Action
114881	12 mm	340 mm	Pieces
114884	14 mm	340 mm	Pieces
114890	16 mm	340 mm	Pieces
114893	18 mm	340 mm	Pieces
114899	20 mm	320 mm	Pieces
114904	22 mm	320 mm	Pieces
114910	24 mm	320 mm	Pieces
114919	25 mm	520 mm	Pieces
114922	28 mm	370 mm	Pieces
114925	28 mm	570 mm	Pieces
114928	30 mm	370 mm	Pieces
114931	30 mm	570 mm	Pieces
114935	32 mm	370 mm	Pieces
114939	32 mm	570 mm	Pieces
114942	35 mm	370 mm	Pieces
114945	35 mm	570 mm	Pieces
114948	38 mm	370 mm	Pieces
114951	38 mm	570 mm	Pieces
114954	40 mm	370 mm	Pieces
114957	40 mm	570 mm	Pieces
