MPC-Quick fasteners

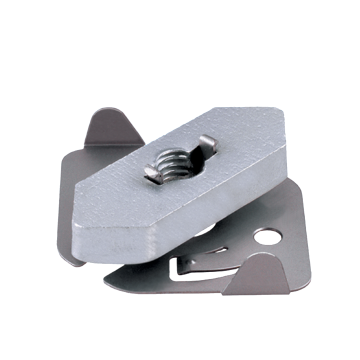

V2A MPC-Quick fastener for angle mounting, M8 for profiles 38/40-40/60

Display variants as list

Connecting thread:

M8 M10

Surface:

V2A
Art.no.: 120794
Connecting thread: M8
Surface: V2A
Sales unit: 50 Pieces
Weight/item: 0.033 kg
Pieces

Field of application

  • Secure and easy installation in slot of MPC-Support channel in order to attach mounting accessories
  • Angle mounting for fast and efficient installation of brackets and mounting angles

Advantages

  • Time-saving attachment in the channel slot, even if subsequently fitted between existing pipe sections
  • Simple and secure handling: insert in the MPC-Support channels ‒ turn ‒ and the MPC-Quick fastener is fixed. No slipping, no falling out
  • Adjustment marks on the side facilitate its positioning in the support channel
  • High quality and load capacity
  • Suitable for MPC-Support channel profiles 38/40 and 40/60
Basic data text:
V2A MPC-Quick fastener for angle mounting, M8 for profiles 38/40-40/60
Support channels:
for MPC-Profiles
Design:
With internal thread
Product type:
Connecting parts
Material:
V2A
Surface:
V2A
Connecting thread:
M8
Stainless:
Yes
max. recommended load across (move):
1000 N
Max. recommended tensile load:
2800 N
Tightening torque:
25 Nm
