MPC-Diagonal strut 440 | hot-dip galvanised

MPC-Diagonal strut

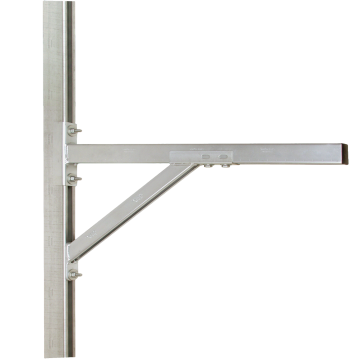

MPC-Diagonal strut for profiles 38/40-40/120, length: 440 mm, hot-dip galvanised

Art.no.: 129789
Sales unit: 1 Pieces
Weight/item: 1.404 kg
Pieces

Field of application

  • Diagonal strut for the direct wallmounting of wall hanger brackets, for channel support and for wall hanger brackets with baseplate
  • Suitable for outdoor use

Advantages

  • Quick mounting due to preinstalled double rail nuts
  • With clip-over edges for the wall hanger bracket
  • Oblong holes at the side enable the positioning of MPC-Support channels 38/40 with slot at the side
Basic data text:
MPC-Diagonal strut for profiles 38/40-40/120, length: 440 mm, hot-dip galvanised
Support channels:
for MPC-Profiles
Product type:
Connecting parts
For profiles:
38/40-40/120
Material:
Steel
Surface:
hot-dip galvanised

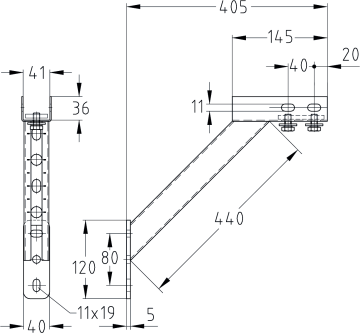

Length L [mm]:
440
Length L1:
405 mm

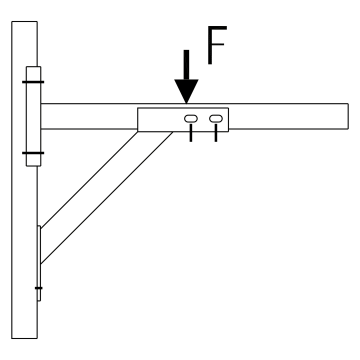

Max. recommended load directly mounted:
6,000 N
Max. recommended load mounting in support channel slot:
2,500 N
Customs tariff number:
73269060
