StaboFix® Section

StaboFix® Section

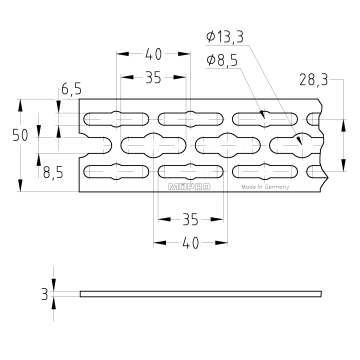

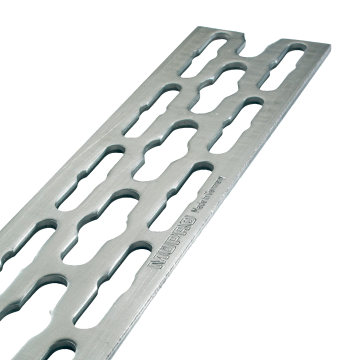

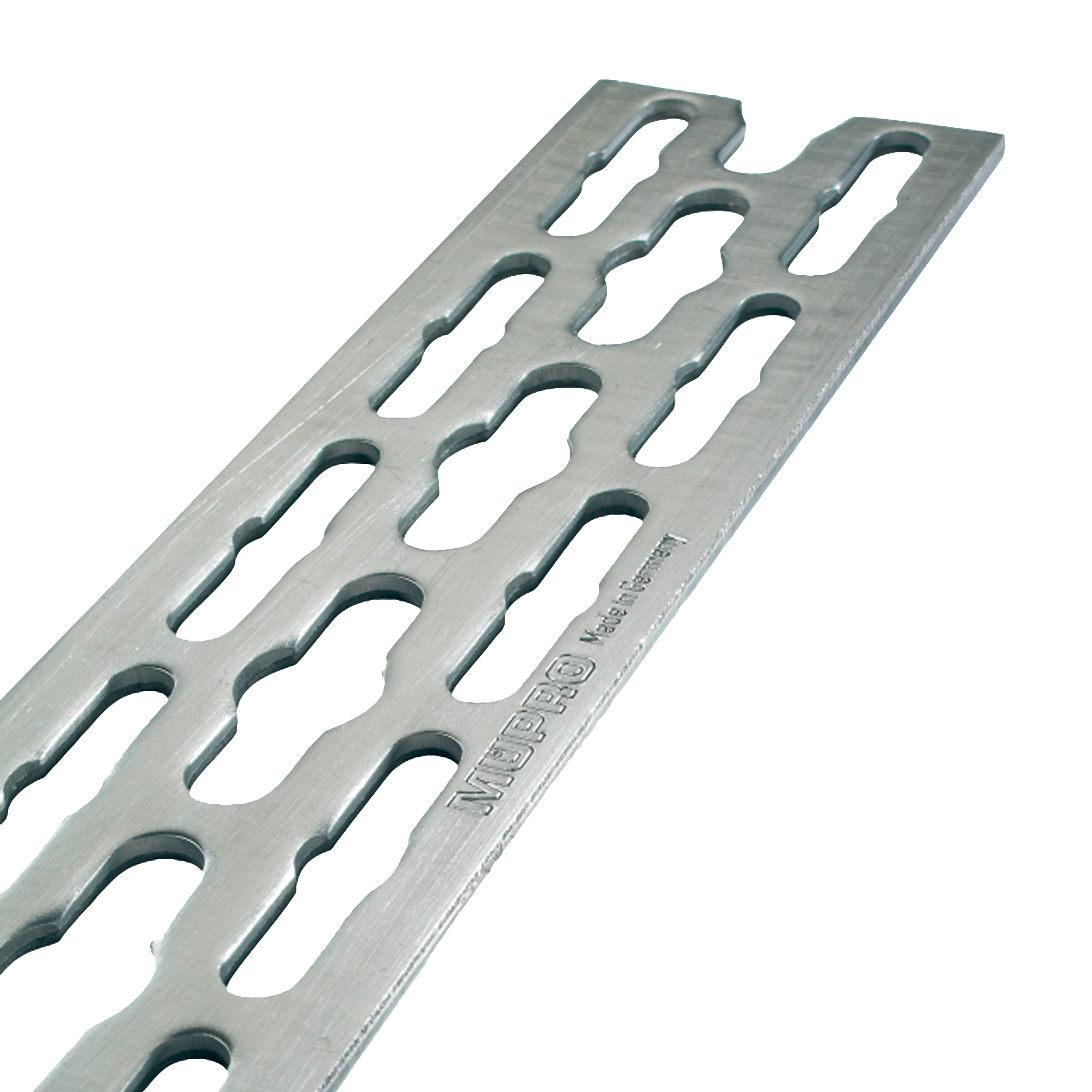

StaboFix® Section, 50 x 3 mm, length: 2.000 mm, galvanised

Art.no.: 129076
Sales unit: 10 Pieces
Weight/item: 1.417 kg
Pieces

Field of application

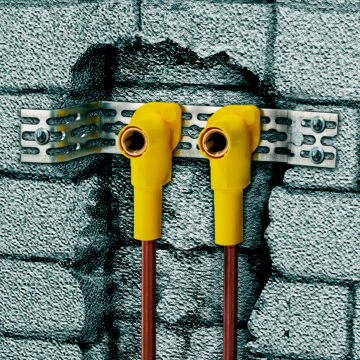

  • Fixing system for mounting in cramped shafts, ducts and washbasin installation

Advantages

  • High flexibility due to versatile range of applications in front of and within a wall, in wall recesses, wall break-throughs as well as in supply shafts
  • Simple folding on site can bring the StaboFix® Sections into the desired form
  • The StaboFix® Retaining plate can be simply and quickly clipped onto the sections and enables the attachment of non-twisting and centred wall carrier plates
  • Smooth attachment of all common sanitary systems, while obtaining standard sanitary measures by means of a special hole template in the section
  • Simple height adjustment of syphon bends or cross-running pipes using StaboFix® Clamps and threaded pins
  • Pipe clamps with connection threads M8 and M8/M10 can be simply and quickly attached with StaboFix® Bolts
  • All system components are perfectly matched to each other reducing the assembly effort
  • High quality and firmness of the components
  • Effective installation due to the basic assortment of installation components
Basic data text:
StaboFix® Section, 50 x 3 mm, length: 2.000 mm, galvanised
Support channels:
for StaboFix@ fastening systems
Product type:
Accessories support channels
Material:
Steel
Surface:
galvanised
Width:
50 mm
Length:
2,000 mm
Thickness:
3 mm
Customs tariff number:
72166190
