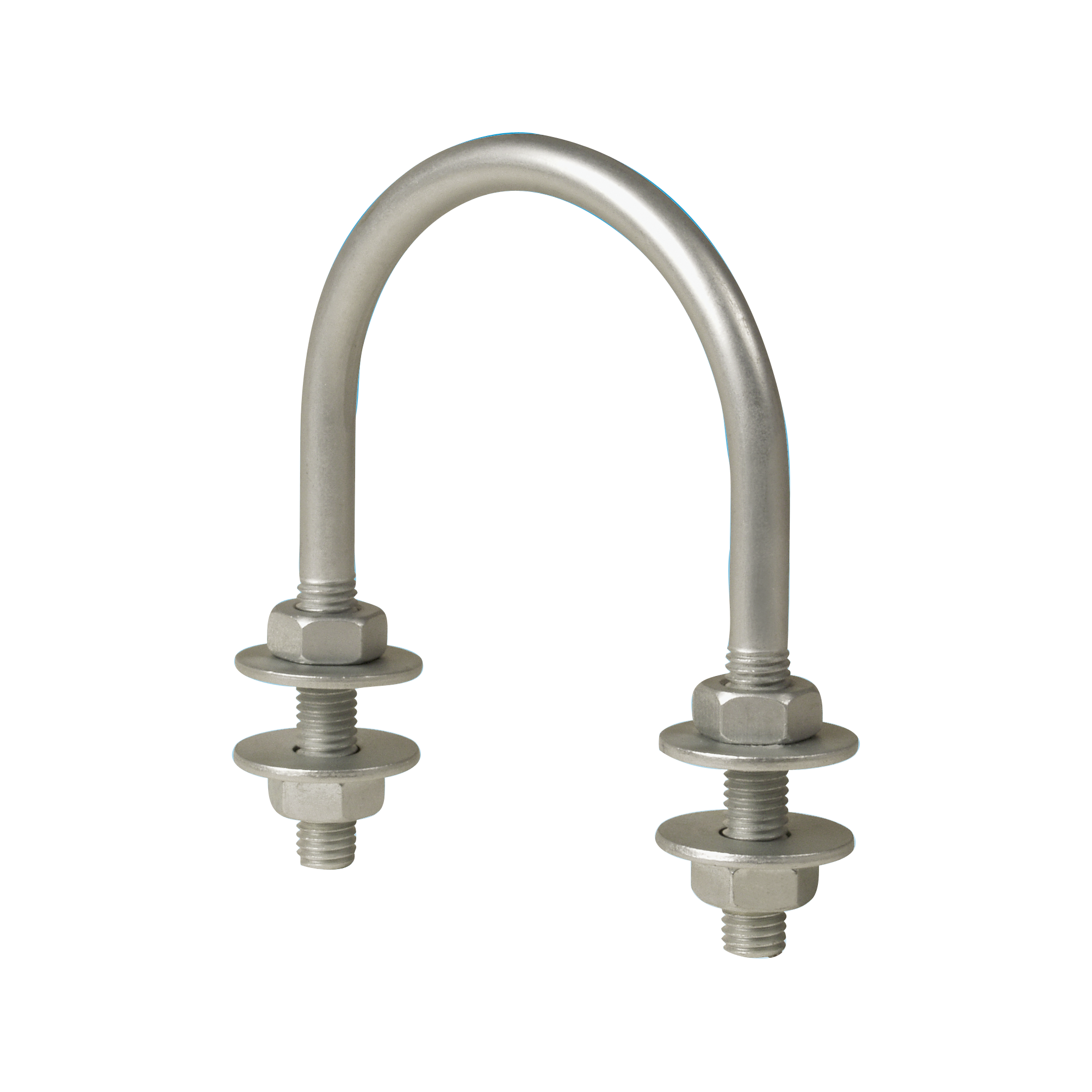

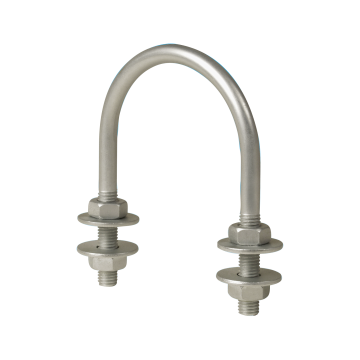

U-bolts

U-bolts

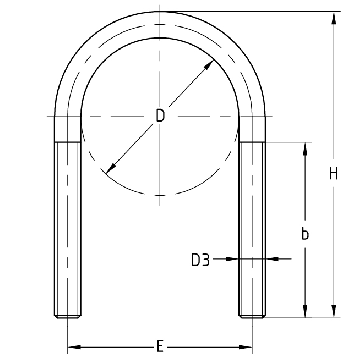

similar to DIN 3570, form A, galvanised

Display variants as list

Pipe outer Ø D:

22 mm 27 mm 34 mm 43 mm 49 mm 61 mm 77 mm 89 mm 108 mm 115 mm 133 mm 140 mm 159 mm 169 mm 220 mm 273 mm 324 mm

Field of application

For simple pipe attachment in building technology and industrial construction
Complies with the VdS (German Association of Property Insurers) Guideline 2092 for sprinkler systems

Advantages

Design similar to DIN 3570
Standard material S235JR (St37) acc. to DIN EN 10025
Electrolytically galvanised
Supplied with 4 nuts acc. to DIN 934. In the M8 to M12 versions, also with 4 washers

Product type:: U-bolts

U-bolts, similar to DIN 3570, form A, galvanised

	Product number	Pipe outer Ø D	Action
	113317	22 mm	Pieces
	113320	27 mm	Pieces
	113323	34 mm	Pieces
	113326	43 mm	Pieces
	113329	49 mm	Pieces
	124881	61 mm	Pieces
	124884	77 mm	Pieces
	124887	89 mm	Pieces
	124920	108 mm	Pieces
	124929	115 mm	Pieces
	124932	133 mm	Pieces
	124935	140 mm	Pieces
	124938	159 mm	Pieces
	124941	169 mm	Pieces
	125109	220 mm	Pieces
	113174	273 mm	Pieces
	113180	324 mm	Pieces
