Laser distance meter

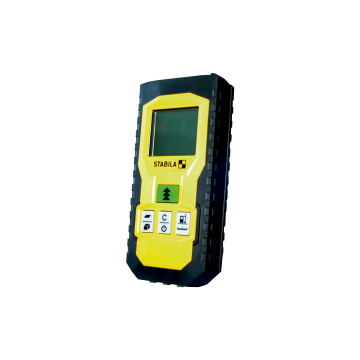

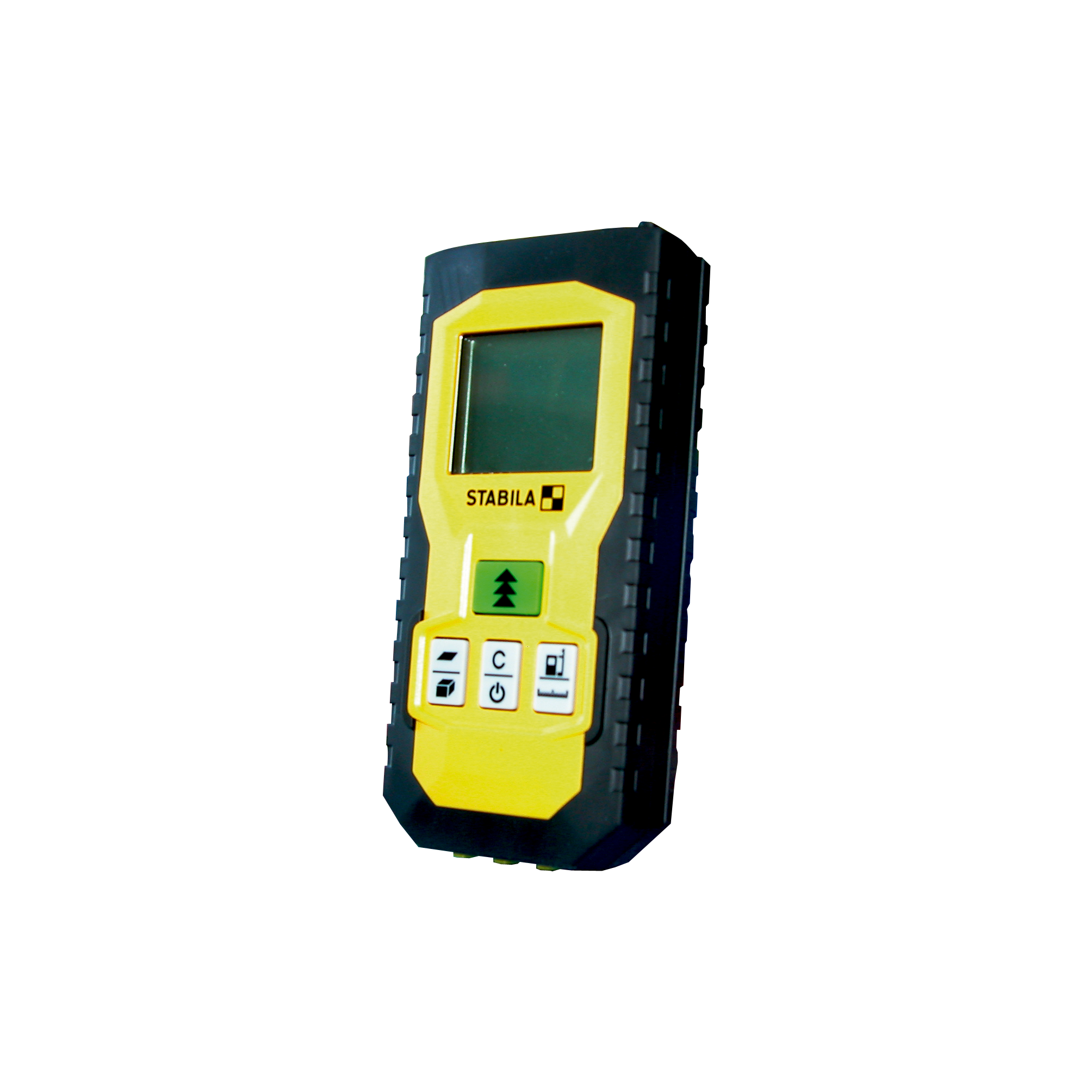

Laser distance meter LD 320

Art.no.: 142404
Sales unit: 1 Pieces
Weight/item: 0.430 kg

Field of application

  • Ideal laser distance meter for indoor use
  • Provided with all basic functions (length, area, volume, tracking permanent measure, Pythagoras with two meter points)


  • High measurement accuracy, measure up to 60 m with laser precision
  • Large figures and backlit display
  • Calculates distance values within one second
  • Different measure references on the frontside and backside of the housing
  • Belt bag for comfortable transportation
  • Robust structure with resistant box for challenging use on construction sites
  • Simple, self-explanatory handling
  • Secure and fast measuring on hard to reach locations
Basic data text:
Laser distance meter LD 320
LD 320
54 mm
100 mm
Max. measuring distance:
60 m
Min. measuring distance:
0.0 m
Life cycle of alkaline batteries:
up to 3,000 measurements
Scope of supply:
Belt bag, alkaline batteries
Protection class:
IP 40
30 mm
Laser class:
635 nm, class 2
Measuring functions:
Single and permanent measurement
Measuring accuracy at 10 m:
±1.5 mm
Computational functions:
Length, area, volume, tracking (permanent measure), Pythagoras with 2 and 3 meter points
Customs tariff number:
