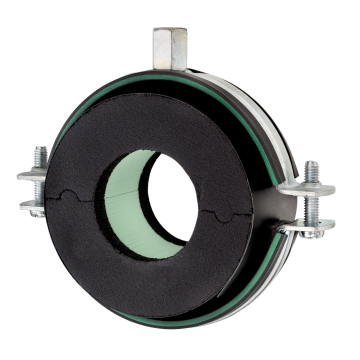

Insulation clamps RTN+ type 2 and 4

two-piece, with single bossed clamps JUNIOR with DÄMMGULAST® green and insulation shells, galvanised

Display variants as list

Type:

Type 2 - Insulation thickness 9.5 - 15 mm Type 4 - Insulation thickness 15.5 - 25.5 mm

Vibration control lining:

DÄMMGULAST® green

Pipe outer Ø (steel pipe):

6 mm 10.2 mm 12.5 mm 13.5 mm 17.2 mm 21.3 mm 26.9 mm 33.7 mm 42.4 mm 48.3 mm 54 mm 60.3 mm 63.5 mm 76.1 mm 88.9 mm 108 mm 114.3 mm

Field of application

Insulation of pipelines in the field of refrigeration
Specially suitable for attachments in ventilation, air-conditioning, heating, refrigeration installations as well as for hot and chilled water pipes

Advantages

Rigorous avoidance of temperature bridges in cold pipelines
Highly effective insulation due to support elements made of PIR and a synthetic rubber mantle
Insulation thickness matched to the increasing insulation layer thickness of the insulation sleeves
Rubber surfaces on the face sides allow easy bonding with the rubber pipe insulation
Structure-borne noise damping due to DÄMMGULAST® vibration control lining with green identification stripe: Average sound level improvement up to 18 dB(A)

Fire classification:: DIN EN 13501-1:2007 Euroclass E
Design:: Insulation clamp with ultraflexible closed cell insulation system with high water vapour diffusion resistance and low thermal conductivity, with two-piece pipe clamp, vibration-damped with DÄMMGULAST® lining
Product type:: Refrigerant pipe clamps
Effective density:: 120 kg/m³
Vibration control lining:: DÄMMGULAST® green
Temperature range:: -45 °C to +105 °C
Thermal conductivity:: λ = 0.034 W/mK at 0 °C, λ = 0.038 W/mK at +40 °C
Water vapour diffusion resistance:: µ = 10,000

Insulation clamps RTN+ type 2 and 4, two-piece, with single bossed clamps JUNIOR with DÄMMGULAST® green and insulation shells, galvanised

Product number	Type	Vibration control lining	Pipe outer Ø (steel pipe)	Action
150411	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	6 mm	Pieces
150413	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	10.2 mm	Pieces
150414	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	12.5 mm	Pieces
150415	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	13.5 mm	Pieces
150416	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	17.2 mm	Pieces
150417	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	21.3 mm	Pieces
150418	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	26.9 mm	Pieces
150419	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	33.7 mm	Pieces
150421	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	42.4 mm	Pieces
150422	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	48.3 mm	Pieces
150423	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	54 mm	Pieces
150425	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	60.3 mm	Pieces
150426	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	63.5 mm	Pieces
150428	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	76.1 mm	Pieces
150430	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	88.9 mm	Pieces
150432	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	108 mm	Pieces
150433	Type 2 - Insulation thickness 9.5 - 15 mm	DÄMMGULAST® green	114.3 mm	Pieces
150434	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	10.2 mm	Pieces
150435	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	12.5 mm	Pieces
150436	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	13.5 mm	Pieces
150437	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	17.2 mm	Pieces
150438	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	21.3 mm	Pieces
150439	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	26.9 mm	Pieces
150440	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	33.7 mm	Pieces
150442	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	42.4 mm	Pieces
150443	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	48.3 mm	Pieces
150444	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	54 mm	Pieces
150446	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	60.3 mm	Pieces
150447	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	63.5 mm	Pieces
150449	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	76.1 mm	Pieces
150451	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	88.9 mm	Pieces
150453	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	108 mm	Pieces
150454	Type 4 - Insulation thickness 15.5 - 25.5 mm	DÄMMGULAST® green	114.3 mm	Pieces
