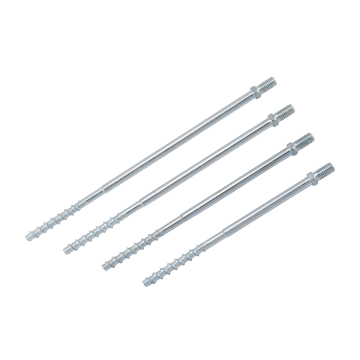

Screws for concrete long

Type TSM, M8, galvanised

Display variants as list

Field of application

  • For anchorages free of expansion pressure in cracked and non-cracked concrete
  • For direct attachment of support channels, wall hanger brackets and other assembly parts
  • Long shank design for attachments, e.g. through insulating materials


  • More than 25 % reduction of assembly time per attachment point
  • Versatile use in concrete and other solid building materials
  • High security, no splaying effect - thus can be placed close to the edge and to other screws
  • High load capacity due to form lock
  • Easy to withdraw, facilitates corrections during installation
  • No additional mounting or setting tools required
  • European Technical Assessment for cracked and uncracked concrete
  • Fire protection in concrete
  • Suitable for the installation of gas mains according to the TRGI (Technical Rules for Gas Installations)
  • Two effective anchorage depths for greater flexibility
Product type:
metal plugs
