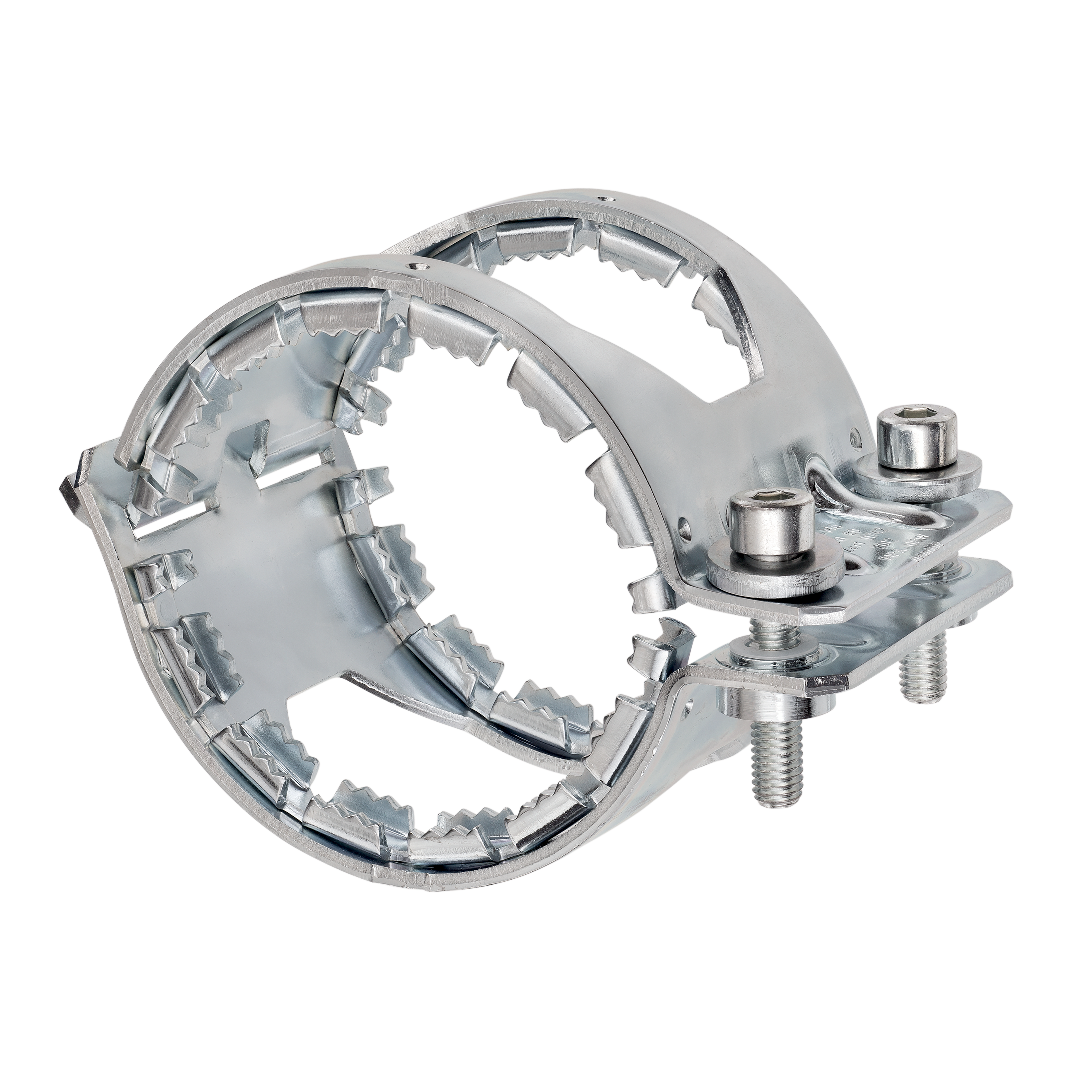

Securing clamps

galvanised

Display variants as list

Nominal size DN:

50 70 80 100 125 150 200 250 300

Field of application

For longitudinal-locking connection of cast iron (SML) pipes according to DIN 19522/EN 877
For pipe connections with high requirements, e.g. for use in backpressure and impact zones or for deflections and diameter steps in downcomers

Advantages

Assembly time reduced by 50 % with the Securing clamp Express thanks to only 2 tightening screws in combination with suspension joint and one-piece design
Especially strong flanges for absorbing large forces
Stable wrap-around of pipe enables optimal securing of the pipe connection cast-iron
Retro-fitting to pipelines that are already laid can be made at any time
Tested and approved by the Material Testing Institute of North Rhine-Westphalia up to DN 150, supervision contract Nr. 117430
One-piece securing clamps patent-nr. DE102012001439A1

Securing clamps, galvanised
