Field of application

  • Ideal as support for risers or suspended pipes
  • Suitable for attachment of pipelines in residential and industrial constructions
  • For indoor use

Advantages

  • Efficient fastener for quick pipe attachment

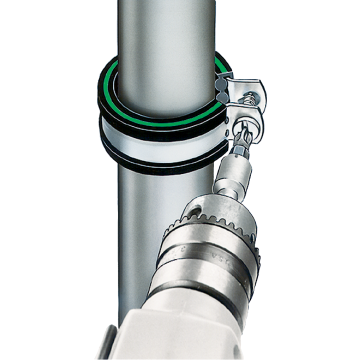

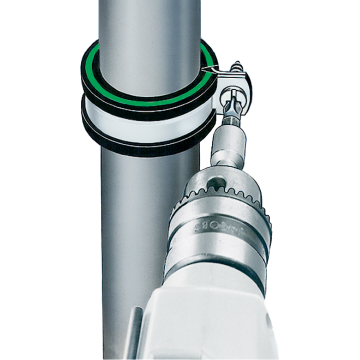

  • Quick-fastening, suitable for screwdriver

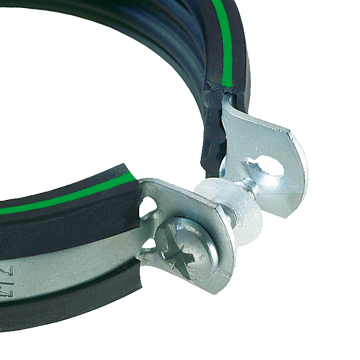

  • Self-locating fastener screw
  • Fastener screw with captive washer
  • Practical, one-piece design
  • DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
  • Acoustic insulation, positive-fit liner with wide clip-over edges prevent the lining from slipping out of the pipe clamp
Product type:
Pipe clamps light load range
Vibration control lining:
DÄMMGULAST® green
Material:
Steel
Surface:
galvanised
Average vibration reduction:
18 dB(A)
